Industrial (SM, SMC & SH Series)

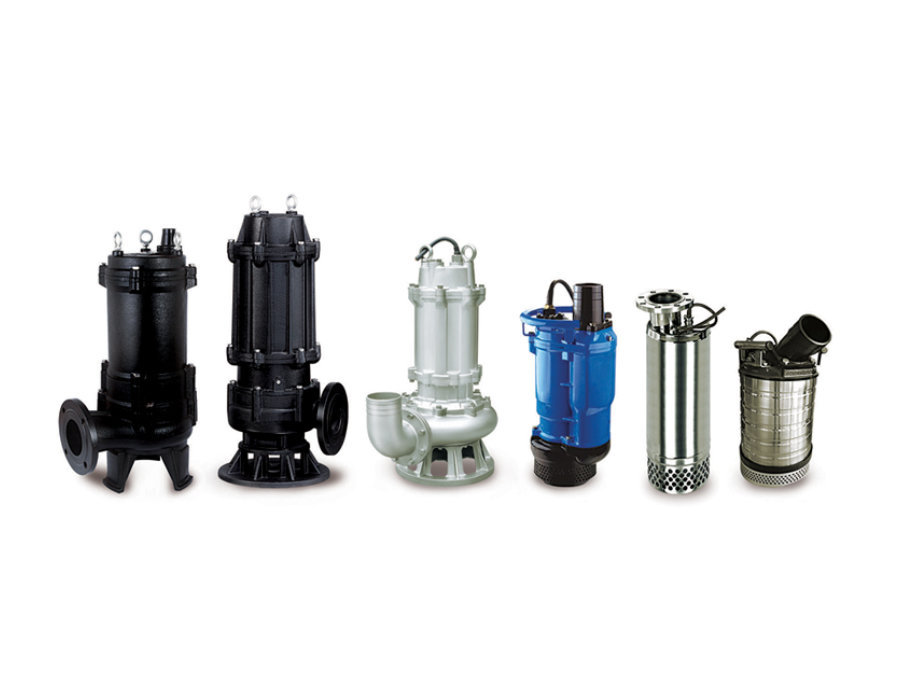

Engineered for demanding applications, the SM, SMC, and SH series from C.R.I. are medium-duty wastewater pumps crafted to manage a diverse range of challenging liquids. These pumps excel in transporting wastewater laden with solids, mud, raw water, and fermented sewage. Designed with durability in mind, each pump features dry-type motors with F-class insulation, ensuring reliable performance under rigorous conditions. Available with various impeller options, including semi-open and enclosed designs, these pumps are equipped with dual mechanical seals for enhanced reliability and providing a robust solution for extended and trouble-free service life. Ideal for robust wastewater management, these series guarantee trouble-free service, providing a steadfast solution in wastewater technology.
Applications
- Pumping sewage
- waste water
- Rain and storm water
- Industrial
Key Features
- Large free passage
- Non clog impeller
- Inbuilt thermal protection and moisture sensor in specific ranges
All you need to know about - Metal, Mineral and Mining (SM, SMC & SH Series)
Specifications
| Maximum Flow | Up to 780 m³/h |
| Head | Up to 62 m |
| Speed | 1450 / 2900 RPM |
| Impeller Type | Enclosed / Semi Open Impeller |
| Outlet Size | Up to 250 mm |
| Power | Up to 37 kW |
| Liquid Temperature | Up to 40°C |
| Max Solid Size | Up to 55 mm |
| Shaft Seal | Mechanical Seal |
| Material of Construction (MOC) | Cast Iron |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 5 m |
| Maximum Working Pressure | Up to 6.2 bar |
Material of Construction
| Part Name | Material |
|---|---|
| Impeller | SS 304 / Noryl / Cast Iron |
| Bracket | Cast Iron |
| Casing | Cast Iron |
| Motor Shaft | SS 410 |
| Motor Body | SS 304 |
