MD Series
TP Series

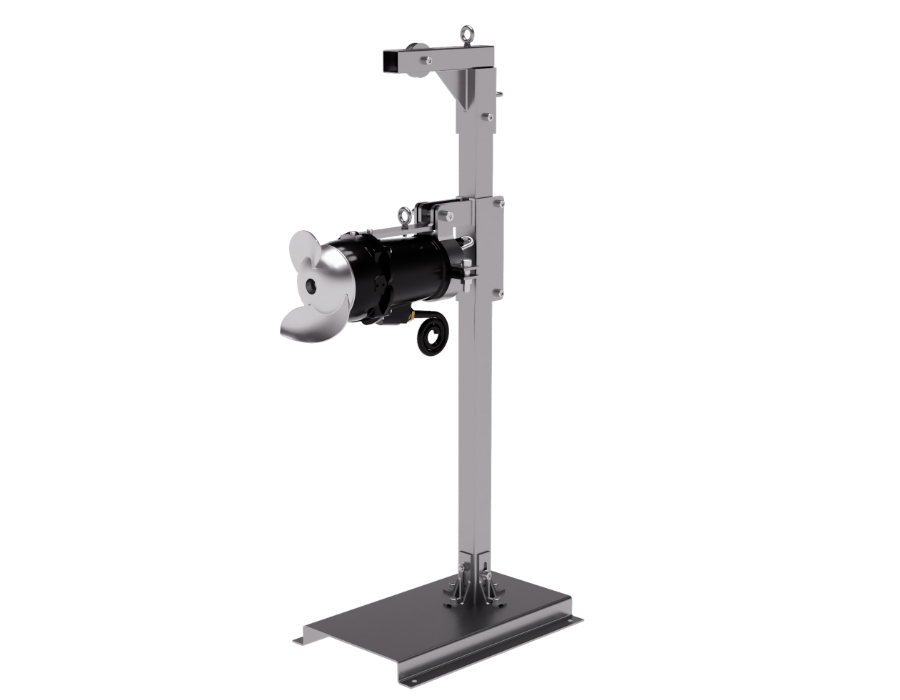

MD Series
The C.R.I MD Series submersible mixers represent the pinnacle of mixing technology, meticulously designed to address a broad spectrum of applications within both industrial and municipal settings. Renowned for their exceptional energy efficiency and versatile operational capabilities, these mixers excel in tasks ranging from agitating and blending to dissolving and suspending solids. With advanced features including energy-efficient motors and a robust gearbox design, the MD Series ensures optimal performance and unmatched durability, making it the preferred choice for handling challenging mixing duties in treatment facilities.
Applications
- Mixing up and handling of liquids with suspended solids
- Mixtures of high viscous liquids in chemical and process industry
Key Features
- Stainless steel blades
- Wide range of curves
- Inbuilt thermal overload protector and moisture sensor in specific ranges
- Optimized self cleaning propeller
All you need to know about – Sewage & Drainage – Mixer (MD series)
Specifications
Maximum Flow | Up to 1558 m³/h |
Head | Up to 22 m, Axial Force: 912 N |
Speed | 960 / 1450 RPM |
Impeller Type | NA |
Outlet Size | NA |
Power | Up to 3.4 kW |
Liquid Temperature | Up to 40°C |
Max Solid Size | NA |
Shaft Seal | NA |
Material of Construction (MOC) | Motor – CI with 0.3% Cu, Ni and Mo, Blades – Stainless Steel |
Bearing Lubrication | Grease |
Maximum Immersion Depth | 20 m |
Maximum Working Pressure | Up to 2.2 bar |

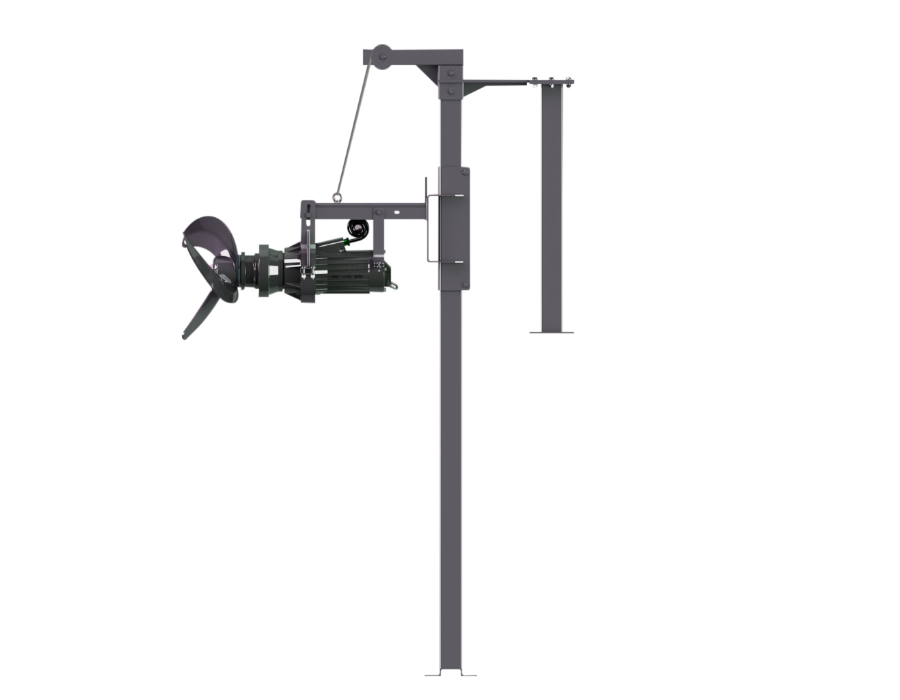

TP Series
Presenting the C.R.I TP Series mixers—an unparalleled solution for managing demanding mixing operations in municipal and industrial treatment settings. Engineered to excel in tasks ranging from agitating wastewater to blending complex materials, these mixers guarantee continuous, efficient performance. With features such as inbuilt thermal overload protectors and optimized propellers, the TP Series ensures seamless operations, mitigating downtime and enhancing overall process efficiency. Trust in the TP Series to meet your most challenging mixing needs with precision and reliability.
Applications
- Mixing up and handling of liquids with suspended solids
- Mixtures of high viscous liquids in chemical and process industry
Key Features
- Stainless steel blades
- Wide range of curves
- Inbuilt thermal overload protector and moisture sensor in specific ranges
- Optimized self cleaning propeller
All you need to know about – Sewage & Drainage – Mixer (TP series)
Specifications
Maximum Flow | Up to 6702 m³/h |
Head | Up to 75 m, Axial Force: 3725 N |
Speed | 200 / 250 RPM |
Impeller Type | NA |
Outlet Size | NA |
Power | Up to 18.5 kW |
Liquid Temperature | Up to 40°C |
Max Solid Size | NA |
Shaft Seal | NA |
Material of Construction (MOC) | Motor – CI with 0.3% Cu, Ni and Mo, Blades – Stainless Steel |
Bearing Lubrication | Grease |
Maximum Immersion Depth | 20 m |
Maximum Working Pressure | NA |
