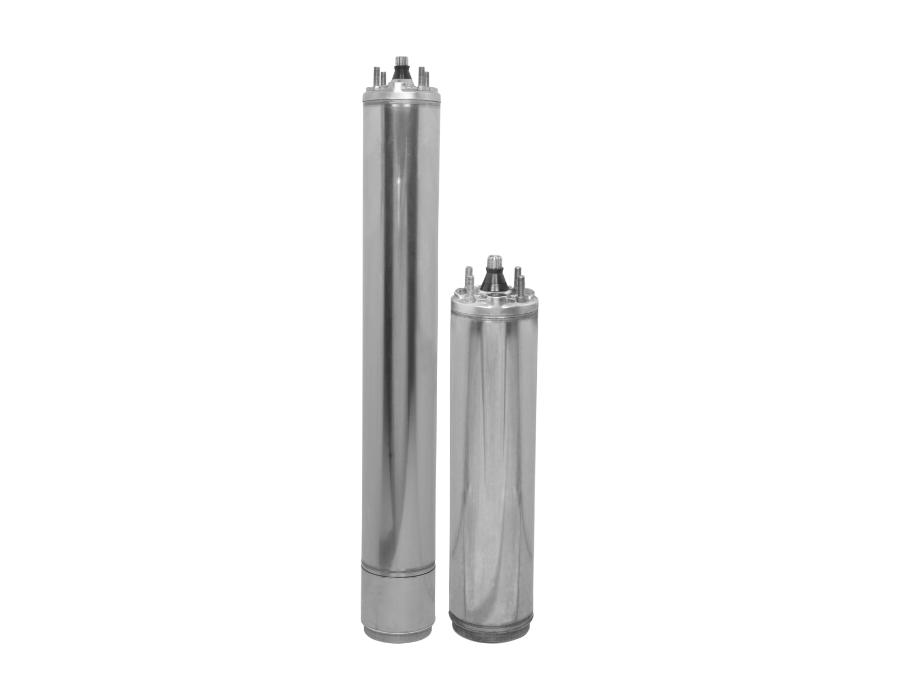

SUBMERSIBLE MOTORS (4" WATER FILLED)
Introducing C.R.I.’s 4” Water-Filled Submersible Motors, the perfect blend of advanced technology and robust construction. Meticulously crafted for full submersion, these motors feature a water-based cooling system that enhances longevity, even under the most demanding conditions. Ideal for applications requiring reliable water delivery, such as sophisticated irrigation systems and complex water supply networks, each motor exemplifies our dedication to quality, sustainability, and reliability. Experience the excellence of C.R.I. motors, engineered to deliver flawless performance for years to come.
Applications
- Residence
- Agriculture
- Gardens
- Sprinkler systems
- Fountains
- Building services
Key Features
- High efficiency
- Water lubricated rewindable motor
- Thermal protection in single phase motors
- Extremely hardwearing and water lubricated bearings
- Corrosion resistant stainless steel motor body
- Can be easily dismantled and repaired
All you need to know about - Submersible Motors (4″ Water Filled)
Specifications
| Nominal Diameter | 4″ |
| Series | Water Filled Rewindable Submersible Motors |
| Power Range kW | Single Phase: 0.37 – 2.2 kW Three Phase: 0.37 – 7.5 kW * Single phase motors are thermally protected. |
| Speed | 2900 rpm |
| Versions | Single Phase: 230V, 50Hz Three Phase: 380V – 415V, 50Hz |
| Method of Starting | Single Phase – Capacitor Star Capacitor Run (CSCR) Three Phase – Direct On Line (DOL) |
| Maximum Down Thrust Load | 0.37 – 1.5 kW – 3000 N 2.2 – 7.5 kW – 6500 N |
| Type of Duty | S1 (Continuous) |
| Degree of Protection | IP 58 |
| Class of Insulation | Y |
| Max. Temperature of Liquid | 30˚C |
| Minimum Cooling Flow Along the Motor | 0.5 m/sec |
| Starts per Hour | Single Phase – 20 Times Three Phase – 12 Times |
| Available M.O.C. | Type A & N |
