Centrifugal Pumps
CTB, CTC & CTS Series
Peripheral Series
JTS & JTB Series
CTB, CTC & CTS Series
The CTB, CTC, and CTS Series of centrifugal pumps are meticulously engineered to address diverse hydraulic needs across a multitude of industries, setting a benchmark for efficiency and durability. These horizontal single-stage centrifugal monoblock pumps feature radial flow impellers meticulously designed to deliver exceptional head and flow, rendering them ideal for applications demanding robust and steadfast water movement. Characterized by a rigid, compact monoblock design, these pumps prioritize energy efficiency, minimizing energy loss commonly encountered during motor-to-pump transmission. Moreover, the integration of a totally enclosed fan-cooled motor empowers these units to operate continuously, ensuring unwavering performance across all operational scenarios.
Applications
- Residence
- Small farms
- Industries
- Pressure boosting
- Cooling system
- Washing systems
Key Features
- High efficiency
- Compact and rigid construction
- Back pull out design
- Single phase pumps are thermally protected
All you need to know about – Centrifugal Pumps (CTB, CTC & CTS Series)
Specifications
Power Range (kW) | 0.37 kW – 2.2 kW |
Speed | 2900 rpm |
Versions | Single Phase: 230V, 50Hz A.C. Three Phase: 380-415V, 50Hz A.C. Supply |
Type of Duty | S1 Continuous Duty |
Degree of Protection | IP 44 / IP 54 |
Class of Insulation | B |
Maximum Discharge | Up to 42 m³/h |
Maximum Head | Up to 52.5 m |
Max. Suction Lift | Up to 7 m |
Sealing Type | Mechanical Seal |
Max. Liquid Temperature | 30°C |
Max. Ambient Temperature | 40°C |
Max. Operating Pressure | 5.2 bar |
Flange Standard | Manufacturer Standard |
Suction Flange Size (mm) | 25, 32, 50, & 65 |
Delivery Flange Size (mm) | 25, 40, & 50 |

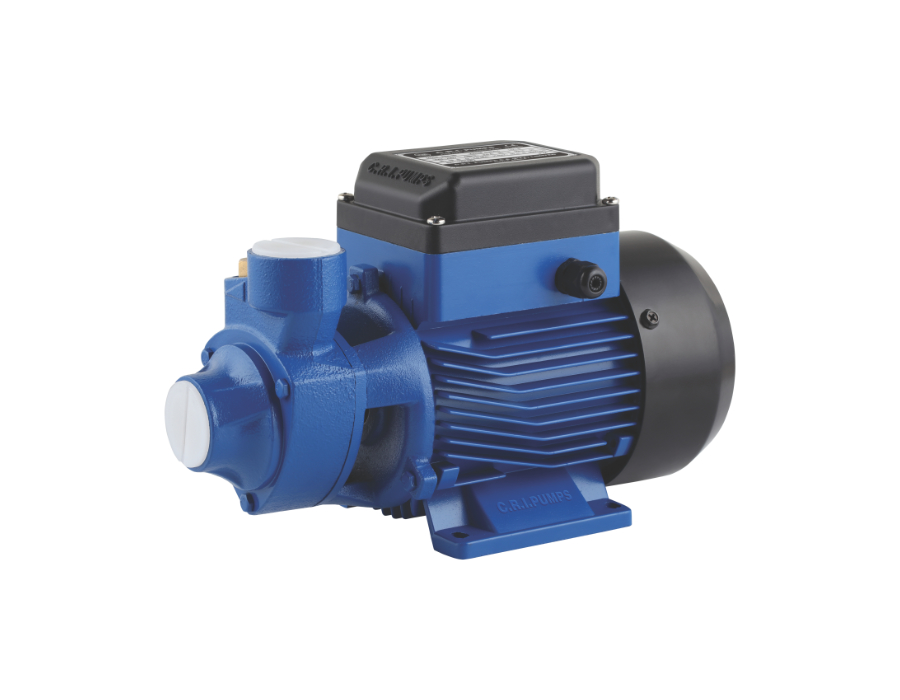

Peripheral Series
Introducing the C.R.I. PE Series Peripheral Pumps, engineered to deliver robust performance for elevated water movement needs. Designed with a non-self-priming monoblock configuration and a peripheral impeller, these pumps excel in higher-head applications, efficiently extracting clear water from sumps and shallow wells. Their compact, sturdy construction guarantees energy-efficient operation, eliminating energy loss during transmission. Each pump is outfitted with a brass impeller and a high-precision mechanical seal, ensuring long-term reliability, with a stainless steel insert to prevent impeller jamming. Moreover, all single-phase models feature thermal protection, further enhancing safety and durability.
Applications
- Residence
- Gardens
- Sprinkler systems
- Fountains
Key Features
- Silent operation
- Sturdy and compact
- Thermally protected motor
All you need to know about – Centrifugal Pumps (Peripheral Series)
Specifications
Power Range (kW) | 0.37 & 0.75 kW |
Speed | 2900 rpm |
Versions | Single Phase, 230V, 50Hz, A.C. Supply |
Type of Duty | S1 Continuous Duty |
Degree of Protection | IP 54 |
Class of Insulation | B |
Maximum Discharge | Up to 2.2 m³/h |
Maximum Head | Up to 55m |
Max. Suction Lift | Up to 7m |
Sealing Type | Mechanical Seal |
Max. Liquid Temperature | 30°C |
Max. Ambient Temperature | 40°C |
Max. Operating Pressure | 6 bar |
Flange Standard | Manufacturer Standard |
Suction Flange Size (mm) | 25 |
Delivery Flange Size (mm) | 25 |
Material of Construction
Part Name | Material |
---|---|
Impeller | SS 304 / Noryl / Cast Iron |
Bracket | Cast Iron |
Casing | Cast Iron |
Motor Shaft | SS 410 |
Motor Body | SS 304 |
This is the additional content that will be shown or hidden.
JTS & JTB Series
Introducing the C.R.I. JTB and JTS Series pumps, an embodiment of high efficiency and robust design meticulously crafted for shallow well and sump applications. These self-priming pumps feature a radial flow impeller engineered to optimize hydraulic efficiency and guarantee superior suction lift capabilities. Available in both single and three-phase variants, these pumps are powered by a totally enclosed fan-cooled motor, perfectly suited for continuous duty. The compact, sturdy construction, combined with a convenient back pull-out design, ensures effortless maintenance. Notably, the JTS series offers models with a fully stainless-steel pump portion, rendering them ideal for hygiene-critical applications. Moreover, all single-phase pumps come equipped with thermal protection, enhancing durability and ensuring safe operation.
Applications
- Residence
- Small farms
- Industries
- Pressure boosting
- Cooling system
- Washing systems
Key Features
- High efficiency
- Compact and rigid construction
- Back pull out design
- Single phase pumps are thermally protected
All you need to know about – Centrifugal Pumps (JTS & JTB Series)
Specifications
Power Range (kW) | 0.37 kW – 1.5 kW |
Speed | 2900 rpm |
Versions | Single Phase: 230V, 50Hz A.C. Supply Three Phase: 380-415V, 50Hz A.C. Supply |
Type of Duty | S1 Continuous Duty |
Degree of Protection | JTS: IP 54 / IP 55 (Optional) JTB: IP 44 |
Class of Insulation | B / F |
Maximum Discharge | Up to 5.5 m³/h |
Maximum Head | Up to 48 m |
Max. Suction Lift | Up to 7 m |
Sealing Type | Mechanical Seal |
Max. Liquid Temperature | 30°C |
Max. Ambient Temperature | 40°C |
Max. Operating Pressure | 4.8 bar |
Flange Standard | Manufacturer Standard |
Suction Flange Size (mm) | 25 & 32 |
Delivery Flange Size (mm) | 25 |
