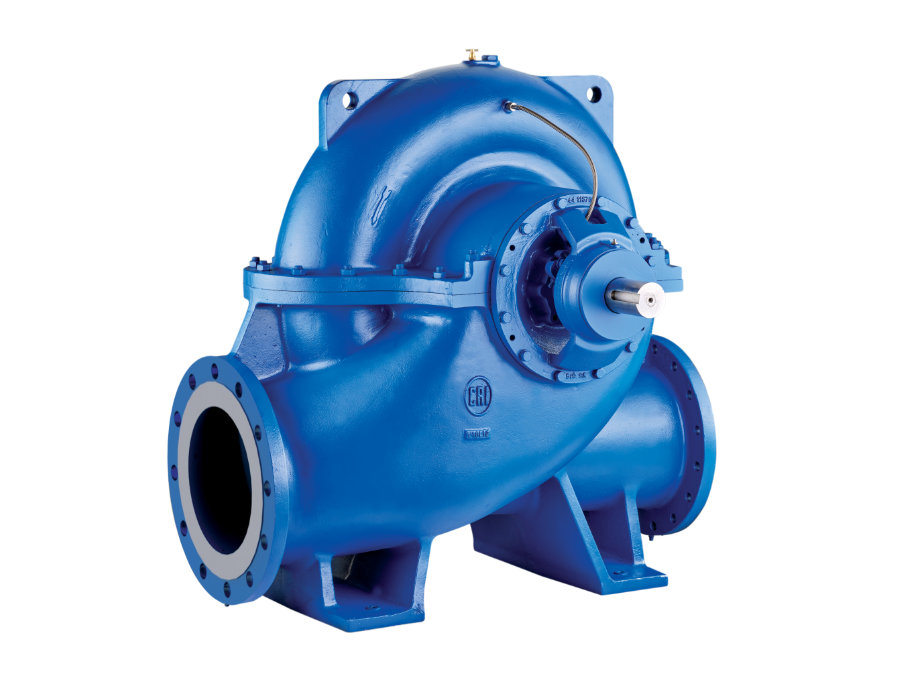

Industrial Pumps (SCW Series)

Introducing the SCW Series, a hallmark of horizontal split case centrifugal pump innovation. Engineered to deliver exceptional flow rates under optimal head conditions, these single-stage double suction pumps are purpose-built for professional environments necessitating dependable, high-capacity water movement. Featuring a between-bearing impeller design, the SCW Series ensures hydraulic equilibrium and eliminates axial thrust, culminating in heightened operational steadiness. Tailored for applications including water treatment facilities, industrial cooling systems, and expansive irrigation ventures, these pumps integrate user-friendly split casings and cast-in-line suction and discharge nozzles for simplified maintenance and reduced downtime. The SCW Series stands as the preferred choice for industries placing a premium on efficiency and reliability.

Applications

Key Features

All you need to know about - Industrial Pumps (SCW Series)

Specifications

Standard Manufacturer Standard
Head Up to 170 m
Maximum Flow Up to 4200 m³/h
Speed 960 / 1450 / 2900 RPM
Impeller Type Enclosed double suction impeller
Outlet Size Up to 450 mm
Power Up to 1460 kW
Liquid Temperature Up to 90°C
Max Solid Size Not applicable
Shaft Seal Gland packing, Mechanical seal
Material of Construction (MOC) Cast iron, Bronze & Stainless steel
Bearing Lubrication Grease, Oil
Flange Standard DIN
Maximum Working Pressure Up to 16 bar
