Submersible Motors (FLOW SERIES)
2” G Flow Series
2.5” G Flow Series
3” G Flow Series
4” G Flow Series
3” PMA’s Series
4” PMA’s Series
2” G Flow Series
Introducing the C.R.I. 2″ and 2.5″ G-Flow Series—precision-engineered for optimal water extraction. Designed specifically for hydrogeology and agricultural development professionals, the C.R.I. G-Flow Series pumps deliver unmatched precision and operational efficiency. Ideal for small to medium-scale applications, these compact units provide reliable water extraction from deep wells. Featuring robust, oil-filled motors and durable thermoplastic impellers, they ensure consistent performance even under variable water conditions. The C.R.I. G-Flow Series stands as an indispensable tool in professional water management, combining advanced engineering with steadfast reliability.
Applications
- Residence
- Gardens
- Sprinkler Systems
- Fountains
- Building Services
Key Features
- High efficiency
- Stainless steel non return valve and suction inter connector
- Floating impeller for better efficiency
- Can be easily dismantled and repaired
All you need to know about – Submersible Pumps (2” G Flow Series )
Specifications
Nominal Diameter | 2 & 2.5 G (Pumpset) |
Power Range in kW | 0.18 – 0.37 kW |
Speed in RPM | 2900 RPM |
Maximum Flow Rate | 0.96 m³/h |
Maximum Head in metres | 46 m |
Outlet Sizes in Inches | ½″ & ¾″ |
2.5” G Flow Series
Introducing the C.R.I. 2″ and 2.5″ G-Flow Series—precision-engineered for optimal water extraction. Designed specifically for hydrogeology and agricultural development professionals, the C.R.I. G-Flow Series pumps deliver unmatched precision and operational efficiency. Ideal for small to medium-scale applications, these compact units provide reliable water extraction from deep wells. Featuring robust, oil-filled motors and durable thermoplastic impellers, they ensure consistent performance even under variable water conditions. The C.R.I. G-Flow Series stands as an indispensable tool in professional water management, combining advanced engineering with steadfast reliability.
Applications
- Residence
- Gardens
- Sprinkler Systems
- Fountains
- Building Services
Key Features
- High efficiency
- Stainless steel non return valve and suction inter connector
- Floating impeller for better efficiency
- Can be easily dismantled and repaired
All you need to know about – Submersible Pumps (2.5” G Flow Series)
Specifications
Nominal Diameter | 2 & 2.5 G (Pumpset) |
Power Range in kW | 0.18 – 0.37 kW |
Speed in RPM | 2900 RPM |
Maximum Flow Rate | 0.96 m³/h |
Maximum Head in metres | 46 m |
Outlet Sizes in Inches | ½″ & ¾″ |

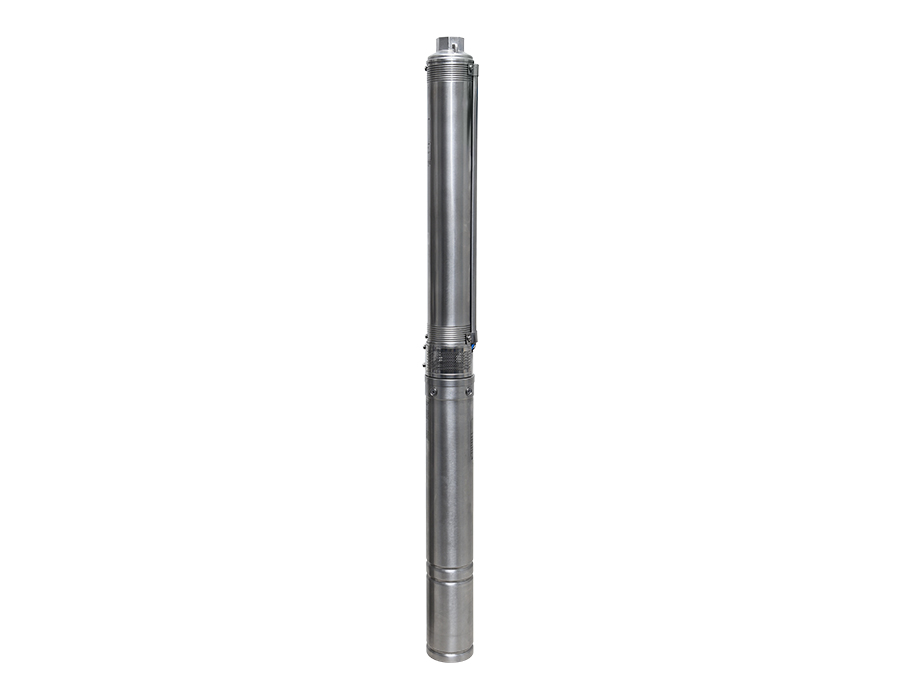

3” G Flow Series
Discover seamless water management with C.R.I. 3″ G-Flow Pumps. Perfect for homeowners in need of a reliable and straightforward water extraction solution, the C.R.I. 3″ G-Flow Series submersible pumps offer a user-friendly design that stands out. Each system features an oil-filled motor and a control box, all packaged in a compact kit for easy installation. The engineered radial flow impellers enhance water flow efficiency, making these pumps ideal for domestic use in deep wells. Perfect for garden irrigation, residential pools, or maintaining a consistent household water supply, these pumps also offer the added benefits of quiet operation and energy efficiency.
Applications
- Residence
- Gardens
- Sprinkler Systems
- Fountains
- Building Services
Key Features
- High efficiency
- Stainless steel non return valve and suction inter connector
- Floating impeller for better efficiency
- Can be easily dismantled and repaired
All you need to know about – Submersible Pumps (3” G Flow Series)
Specifications
Nominal Diameter | 3″ G Flow Series |
Power Range in kW | 0.25 – 1.1 kW |
Speed in RPM | 2900 RPM |
Maximum Flow Rate | 6 m³/h |
Maximum Head in metres | 155 m |
Outlet Sizes in Inches | 1″ & 1¼″ |
4” G Flow Series
The C.R.I. 4″ G-Flow Series submersible pumps are meticulously engineered for deep well and borehole applications, delivering a robust solution for large-scale residential, agricultural, and industrial water supply needs. Each pump comes as part of a comprehensive kit, including a submersible pump, oil-filled motor, and control box, ensuring seamless installation in borewells of 4” diameter and larger. Featuring radial flow thermoplastic impellers and diffusers, these pumps ensure exceptional hydraulic efficiency and reliability. Optimized for energy savings and peak performance, the 4″ G-Flow Series is the definitive choice for users demanding a durable and powerful water extraction system.
Applications
- Residence
- Gardens
- Sprinkler Systems
- Fountains
- Building Services
Key Features
- High efficiency
- Stainless steel Non return valve and Suction inter connector
- Floating impeller for better efficiency
- Can be easily dismantled and repaired
- NEMA Mountings
All you need to know about – Submersible Pumps (4” G Flow Series)
Specifications
Nominal Diameter | 4″ G Flow Series |
Power Range in kW | 0.37 – 2.2 kW |
Speed in RPM | 2900 RPM |
Maximum Flow Rate | 12 m³/h |
Maximum Head in metres | 260 m |
Outlet Sizes in Inches | 1¼″, 1½″ & 2″ |
3” PMA’s Series
The C.R.I. 3” PMA Series is engineered for efficient and reliable deepwell liquid pumping, combining durability and safety with advanced technology. Constructed with stainless steel and food-grade thermoplastic, these pumps are built to withstand demanding conditions while ensuring safe operation. Their optimized hydraulic design maximizes efficiency at greater depths, while the floating impeller handles higher sand content and reduces stress on the motor. Coupled with a robust rewindable 3” submersible motor, these pumps are designed for continuous duty, offering smooth, noise-free operation with the help of dynamically balanced rotors and high-quality bearings. This ensures an extended service life, making the 3” PMA Series a dependable choice for diverse applications.
Applications
- Residence
- Gardens
- Sprinkler Systems
- Fountains
- Building Services
Key Features
- High efficiency
- Stainless steel non return valve and suction inter connector
- Floating impeller for better efficiency
- Can be easily dismantled and repaired
All you need to know about – Submersible Pumps (3” PMA’s Series)
Specifications
Specification | 3″ PMA’s |
Power Range (HP) | 0.5HP – 1.5HP |
Speed (RPM) | 3450 rpm |
Maximum Flow Rate (US gpm) | Up to 31 gpm |
Maximum Head (ft) | Up to 530 ft |
Outlet Sizes (Inches) | 1″ |
4” PMA’s Series
The C.R.I. 4” PMA Series is a versatile and efficient solution for pumping liquids from deep wells. Built with durable stainless steel and food-grade engineering thermoplastic, these pumps ensure safety and longevity in every operation. The optimized hydraulic design delivers maximum efficiency even at greater depths, while the floating impeller technology handles higher sand levels and minimizes motor stress.
Firmly paired with a 4” resin-filled encapsulated motor, the pumps are designed for continuous, reliable performance. Features like a dynamically balanced rotor and high-quality bearings reduce noise and vibration, enhancing operational comfort and extending the pump’s lifespan
Applications
- Residence
- Gardens
- Sprinkler Systems
- Fountains
- Building Services
Key Features
- High efficiency
- Stainless steel non return valve and suction inter connector
- Floating impeller for better efficiency
- Can be easily dismantled and repaired
All you need to know about – Submersible Pumps (4” PMA’s Series)
Specifications
Maximum Flow | Up to 88 gpm |
Head | Up to 35 ft |
Speed | 3450 RPM |
Impeller Type | Enclosed / Semi Open / Vortex |
Outlet Size | Up to 2½″ |
Power | Up to 3.0 HP |
Liquid Temperature | Up to 104°F |
Maximum Solid Size | Up to 1½″ |
Shaft Seal | Mechanical Seal |
Material of Construction (MOC) | Cast Iron and Stainless Steel |
Bearing Lubrication | Grease |
Maximum Immersion Depth | 16 ft |
Maximum Working Pressure | Up to 2.3 bar |
