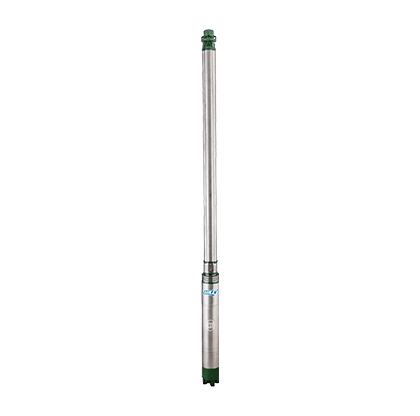

125mm Borewell Submersible Pumpset - NILE Series
Introducing the Nile Series 125mm Borewell Submersible Pumpsets, from CRI, designed to deliver consistent and high-performance results, these pump sets feature a water-filled, rewindable motor that ensures optimal operational efficiency. The precision-engineered impeller and diffuser contribute to the series’ impressive hydraulic efficiency. Furthermore, the robust T-Bolt motor design guarantees long-lasting durability, while the SS 410 cast impellers provide exceptional resistance to corrosion.
Applications
- Agricultural & Irrigation
- Sprinkler system
- Domestic water supply
- Pressure boosting
- Industrial and Mining
Key Features
- In-built thermal overload protector
- T-bolt design
- SS impeller
- Optimized hydraulic design for efficient performance
- More durability and hygiene
- Best suited for 150 mm undersized borewell applications
All you need to know about - 125mm Borewell SUBMERSIBLE PUMPS (NILE Series)
Specifications
| Power Range | 2.2 kW to 5.5 kW (3 HP to 7.5 HP) |
| Speed | 2850 RPM |
| Version | Three phase 380 – 415V; 50Hz AC Supply |
| Maximum Total Head | 60 metres |
| Maximum Flow Rate | 12.5 LPS (45 m³/hr) |
| Maximum Outer Diameter | 130 mm |
| Minimum Cooling Flow along the Motor | 0.15 m/sec |
| Type of Duty | S1 (Continuous) |
| Nominal Outlet Size | 80 mm |
Material Of Construction - Pump
| Component | Material |
|---|---|
| Upper & Lower Housing | Cast Iron |
| Upper & Lower Housing Shell | SS 304 |
| Stator Shell | SS 304 |
| Rotor | Copper Rotor |
| Journal Bushes | LTB – 4 |
| Thrust Assembly | SS 420 and Graphite Carbon |
| Diaphragm | High Nitrile Butyl Rubber |
| Sand Guard | Rubber Nitrile and SS 304 |
Material Of Construction – Motor
| Component | Materials |
| Valve Housing & Suction Housing | Cast Iron |
| Pump Shaft | SS 410 |
| Impeller | SS 410 |
| Stage Casing | Cast Iron |
| Coupling | SS 410 |
| Bracket Bush | LTB – 4 / Nitrile Rubber |
| Sleeve | SS 410 |
