150mm Submersible, 150mm Stainless Steel Submersible Pumpset
Delma Series
Binda 6D Series
Delma Series
CRI’s Delma Series 150 mm Borewell Submersible Pumpsets are known for their strong and reliable performance. The design of these pump sets focuses on efficiency and durability, with the inclusion of T-Bolt construction for added stability. The impellers and diffusers of the Delma Series are also optimally designed to ensure superior hydraulic efficiency. Additionally, these pump sets come equipped with a built-in check valve to protect against backflow and water hammering.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
Key Features
- More sprinklers and wider coverage areas.ers, shaft and stage casings (SS 304/SS 316)
- T-bolt design
- High durability
All you need to know about – 150MM Submersible (Delma Series)
Specifications
| Power Range | 1.5kW – 2.2kW (2HP – 30HP) |
| Speed | 2900 rpm |
| Version | Single Phase 380-415V; Three Phase 200-240V; 50Hz, AC Supply |
| Maximum Total Head | 516 metres |
| Maximum Flow Rate | 22 lps (79.2 m³/h) |
| Maximum Outer Diameter | 147 mm |
| Nominal Outlet Size | 50, 65, 80 & 100 mm |
| Degree of Protection | IP 58 |
| Type of Duty | S1 (Continuous) |
Material Of Construction – Pump
| Component | Material |
|---|---|
| Check Valve Housing | Cast Iron |
| Check Valve Seat | Nitrile Butyl Rubber |
| Diffuser Chamber | SS 304, SS 410 & Cast Iron |
| Impeller | SS 304 & SS 410 |
| Suction Inter Connector | Cast Iron |
| Inlet Screen | SS 202 |
| Pump Shaft | SS 410 / 431 |
| Cable Guard | SS 202 |
| Coupling | SS 410 |
Material Of Construction – Motor
| Component | Material |
|---|---|
| Upper & Lower Housing | Cast Iron |
| Stator Shell | SS 304 |
| Shaft | SS 410 & EN 9 with 304 |
| Journal Bushes | LTB – 4 & Carbon |
| Thrust Assembly | SS 420 & Graphite Carbon |
| Diaphragm | High Nitrile Butyl Rubber |

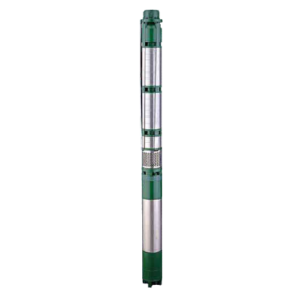

Binda 6D Series
CRI’s BINDA 6D+ 150mm Borewell Submersible Pumps are ingeniously crafted for deep groundwater applications. Featuring a water-filled, rewindable motor for sustained operation and a built-in check valve to mitigate backflow and water hammer risks, these pumps boast waterproof, synthetic film-insulated copper winding and low-watt silicon steel laminations, ensuring high efficiency and durability. The precision-engineered T-Bolt design across all motors enhances structural integrity, making the BINDA 6D+ Series a perfect solution for demanding subterranean water extraction tasks.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
Key Features
- Long life with energy-efficient performance
- Double Depth Working
- Carbon Teflon Pads
- SS 410 Impeller
All you need to know About – 150MM Submersible (Binda 6D Series)
Specifications
| Power Range | 2.2kW – 18.5kW (3HP – 25HP) |
| Speed | 2990 RPM |
| Version | Single phase 200-240V; Three phase 380-415V, 50Hz AC Supply |
| Maximum Total Head | 500 metres |
| Maximum Flow Rate | 20 lps (72 m³/hr) |
| Degree of Protection | IP 58 |
| Maximum Outer Diameter | 146 mm |
| Class of Insulation | A & B Class |
| Type of Duty | S1 (Continuous) |
| Nominal Outlet Size | 50, 65, 80, 100 mm |
Material Of Construcation – Pump
| Component | Material |
|---|---|
| Suction Housing | Cast Iron with SS 304 / SS 410 Top Plate |
| Brackets | Cast Iron |
| Pump Shaft | SS 410 |
| Impeller | SS 410 |
| Counter Thrust Pad | Carbon Teflon Bush |
| Stage Casting/Diffuser | SS 304 & SS 410 / Noryl |
| Coupling | SS 410 |
Material Of Construction – Motor
| Component | Material |
|---|---|
| Upper & Lower Housing | Cast Iron |
| Stator Shell | Stainless Steel |
| Shaft | SS 410 & EN-9 with 304 |
| Journal Bushes | LTB – 4 & Carbon |
| Thrust Pad | SS 420 & Graphite Carbon |
| Diaphragm | High Nitrile Butyl Rubber |
