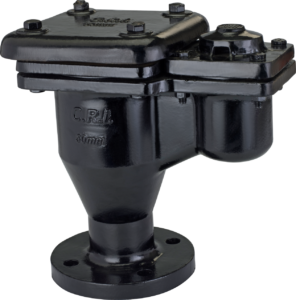

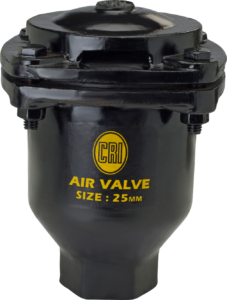

AIR VALVE
Air Valve is connected with delivery pipeline to eliminate the trapped air in the system. Normally in horizontal pipeline, due to unevenness in ground level, there will be an entry of air into the pipeline. It results in pipe damages. Air valves are installed in pipelines.
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- Metal parts of valves are coated with bituminous paint to avoid rust formation
- Double acting Air Valve in specific size
- Rubber ball is made up of natural rubber with wood for long life
All you need to know about - Valves (Air Valves)
Specifications
| Component | Details |
|---|---|
| Material of Construction | Cast Iron |
| Type | Single Acting & Double Acting |
| Maximum Operating Pressure | 5 bar (Single Acting), 15 bar (Double Acting) |
| Available Nominal Size (Single Acting) | 12, 19, 25 mm |
| Available Nominal Size (Double Acting) | 50 mm |
