CETRIFUGAL MONOBLOCK PUMPS
Virat Series
ACM Series
CSS Series
JTSS Series
Virat Series
The CRI VIRAT Series of Centrifugal Monoblock Pump Sets is designed to maximize efficiency with its eco-friendly, fan-cooled AC induction motors. These pumps are constructed using high-quality materials such as enamelled copper wire and low-watt loss silicon steel laminations, ensuring durability and delivering smooth hydraulic performance. This innovative design not only improves operational efficiency but also provides long-lasting reliability for a wide range of applications.
Applications
- Agricultural & Irrigation
- Sprinkler system
- Domestic water supply
- Pressure boosting
- Industrial and Mining
Key Features
- High operational efficiency
- Good suction lift characteristics
- In-built with thermal overload protector
- Designed for wide voltage applications
- Dynamically balanced rotating parts
All you need to know about – Centrifugal MonoBlock Pumps (VIRAT Series)
Specifications
| Power Range | 0.37kW – 1.5kW (0.5HP – 2HP) |
| Speed | 2880 RPM |
| Version | 1Ph – 220 – 240V; 3Ph – 380 – 415V, 50Hz AC Supply |
| Maximum Total Head | 34 metres |
| Maximum Flow Rate | 9 lps (32.4 m³/h) |
| Maximum Suction Lift | 7 metres |
| Degree of Protection | IP 44 / IP 54 |
| Class of Insulation | B |
| Maximum Ambient Temperature | 40°C |
| Sealing | Mechanical seal |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Permanent Split Capacitor (PSC) |
| Direction of Rotation | 1Ph – Clockwise from driving end; 3Ph – Electrically reversible |
| Nominal Pumpset Size (Suction x Delivery) | 25×25, 32×25, 40×32, 40×40, 50×40, 50×50, 60×50, 80×65, 80×80, 100×80 & 100×100 mm |
Material Of Construction – Pump
| Component | Material |
|---|---|
| Pump Casing | Cast Iron |
| Impeller | Cast Iron & Noryl |
| Front Bracket | Cast Iron |
| Motor Frame | Cast Iron & Aluminium |
| Back Cover | Cast Iron & Aluminium |
| Mechanical Seal | Carbon & Ceramic |
| Cooling Fan | Polypropylene |
| Cooling Fan Cover | Mild Steel |
ACM Series
The CRI ACM Series of Centrifugal Monoblock Pump Sets is designed to maximize efficiency with its eco-friendly, fan-cooled AC induction motors. These pumps are constructed using high-quality materials such as enamelled copper wire and low-watt loss silicon steel laminations, ensuring durability and delivering smooth hydraulic performance. This innovative design not only improves operational efficiency but also provides long-lasting reliability for a wide range of applications.
Applications
- Agricultural & Irrigation
- Sprinkler system
- Domestic water supply
- Pressure boosting
- Industrial and Mining
Key Features
- High operational efficiency
- Good suction lift characteristics
- In-built with thermal overload protector
- Designed for wide voltage applications
- Dynamically balanced rotating parts
All you need to know about – Centrifugal MonoBlock Pumps ( ACM Series )
Specifications
| Power Range | 0.37kW – 2.2kW (0.5HP – 3HP) |
| Speed | 2880 RPM |
| Version | 1Ph – 220 – 240V; 3Ph – 380 – 415V, 50Hz AC Supply |
| Maximum Total Head | 60 metres |
| Maximum Flow Rate | 18 lps (64.8 m³/h) |
| Maximum Suction Lift | 7 metre |
| Degree of Protection | IP 44 / IP 54 |
| Class of Insulation | B |
| Maximum Ambient Temperature | 40°C |
| Sealing | Mechanical seal |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Permanent Split Capacitor (PSC) |
| Direction of Rotation | 1Ph – Clockwise from driving end; 3Ph – Electrically reversible |
| Nominal Pumpset Size (Suction x Delivery) | 25×25, 32×25, 40×32, 40×40, 50×40, 50×50, 60×50, 80×65, 80×80, 100×80 & 100×100 mm |
Material Of Construction – Pump
| Component | Material |
|---|---|
| Rear Cover / Bracket | Cast iron |
| Motor Frame | Cast iron / aluminium |
| Shaft | SS 410 |
| Impeller | Cast Iron / SS 304 / Noryl |
| Pump Casing | Cast iron |
| Mechanical Seal | Carbon & Ceramic |

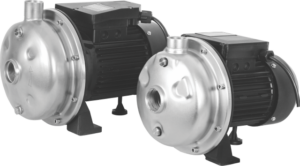

CSS Series
The CRI mono block pump set is a compact and powerful device that can provide water for all your domestic needs, thanks to its centrifugal motor technology. CRI pumps is a renowned name among monoblock pump manufacturers, known for producing reliable and efficient domestic water pumps. The mini monoblock pump is perfect for everyday use, whether you need to water your garden or fulfil everyday household requirements with ease. You can trust CRI, a name synonymous with the best monoblock pumps in India, to provide a durable and high-performance water pump that is easy to use.
Applications
- Domestic
- Garden
- Civil applications
- Farms
Key Features
- In-built thermal overload protector
- Hygienic pumping system
- Back pull-out design for easy servicing and repair
All you need to know about – Centrifugal Monoblock (CTSS)
Specifications
| Power Range | 0.37 kW – 1.8 kW (0.5 HP – 2.5 HP) |
| Maximum Head | 31 meters |
| Maximum Flow Rate | 12 m³/hr |

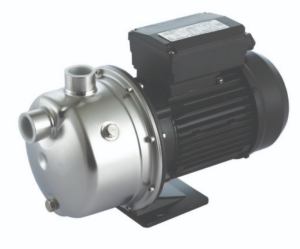

JTSS Series
The CRI mono block pump set is a compact and powerful device that can provide water for all your domestic needs, thanks to its centrifugal motor technology. CRI pumps is a renowned name among monoblock pump manufacturers, known for producing reliable and efficient domestic water pumps. The mini monoblock pump is perfect for everyday use, whether you need to water your garden or fulfil everyday household requirements with ease. You can trust CRI, a name synonymous with the best monoblock pumps in India, to provide a durable and high-performance water pump that is easy to use.
Applications
- Domestic
- Garden
- Civil applications
- Farms
Key Features
- In-built thermal overload protector
- Hygienic pumping system
- Back pull-out design for easy servicing and repair
All you need to know about – Centrifugal Monoblock (JTS)
Specifications
| Power Range | 0.37 kW – 1.1 kW (0.5 HP – 1.5 HP) |
| Maximum Head | 45 meters |
| Maximum Flow Rate | 3.75 m³/hr |
