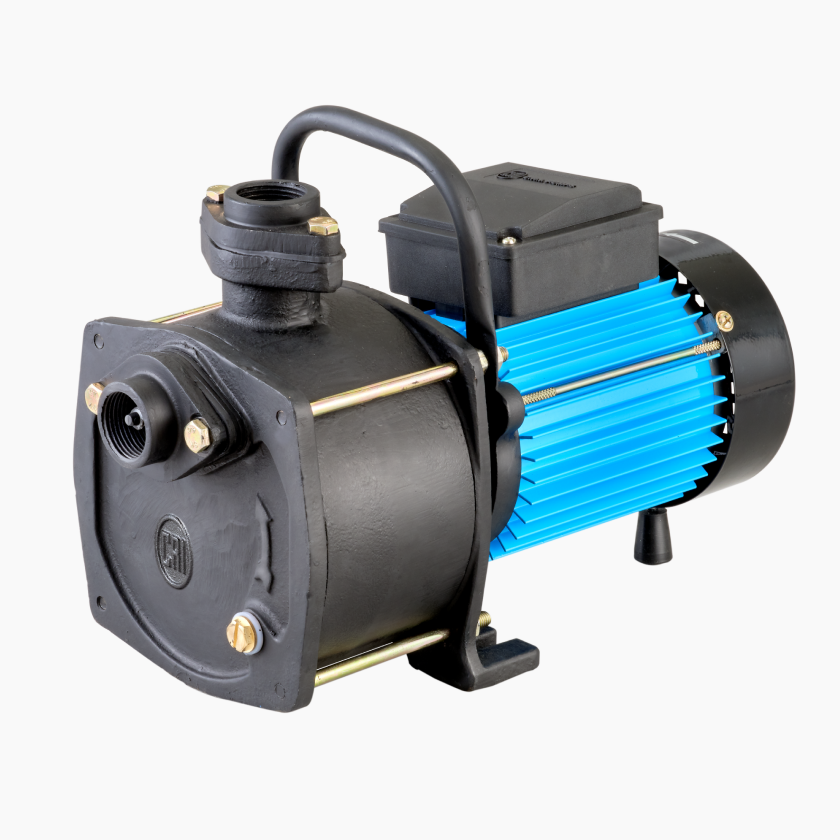

Centrifugal Monoblock Self Priming Pumps (bp SERIES)
Meet the powerhouse of water management – the BP SERIES Centrifugal Monoblock Pumps by CRI. With a robust flow rate of 121 m³/h and a head up to 70 meters, these pumps are engineered to handle liquid temperatures up to 90°C effortlessly. Whether it’s fire fighting, boosting pressure in high-rise buildings, or cooling industrial systems, the BP SERIES delivers unmatched performance and reliability. Designed to tackle your toughest water challenges, the BP SERIES is your go-to solution for efficient and effective water management. Experience the reliability and efficiency of the BP SERIES Centrifugal Monoblock Pumps by CRI and ensure seamless water management in your operations.
Applications
- Domestic
- Garden
- Civil applications
- Farms
Key Features
- In-built thermal overload protector
- Hygienic pumping system
- Back pull-out design for easy servicing and repair
All you need to know about - Centrifugal Monoblock Self Priming Pumps (BP Series)
Specifications
| Power Range | 2.2 kW – 5.5 kW |
| Speed | 2900 RPM |
| Version | 3Ph – 380 / 415V, 50Hz AC Supply |
| Degree of Protection | IP 44 |
| Class of Insulation | E |
| Max. Ambient Temperature | 45C |
| Sealing | Mechanical Seal |
| Type of Duty | S1 (continuous) |
Material Of Construction
| Component | Material |
|---|---|
| Pump Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Frame | Cast Iron |
| Shaft | SS 410 |
| Mechanical Seal | Carbon & Ceramic |
