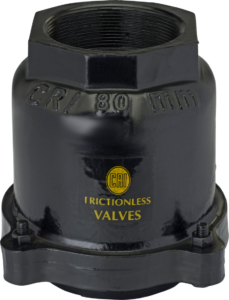

Check Valve
Check Valves are used to prevent backflow. A check valve relies on a pressure differential to work. They require a higher pressure on the input side of the valve than the output side to open the valve.
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- Metal parts of valves are coated with bituminous paint to avoid rust formation
- It increases water discharge upto 20% and reduces energy consumption upto 10%
- Prevent water hammer, up thrust and back spin in the pumping systems
- Natural rubber flap totally prevents water leakage
- Ruggedly built with graded cast iron
- Compact design and easy to install
All you need to know about - Valves (Check Values)
Specifications
| Component | Details |
|---|---|
| Material of Construction | Cast Iron |
| Type | Square Type and Round Type |
| Maximum Operating Head | 5 bar |
| Available Nominal Size (Square Type) | 40 x 40, 50 x 50, 65 x 65, 80 x 80, 100 x 100, 125 x 125, 150 x 150 mm |
| Available Nominal Size (Round Type) | 50 x 50, 65 x 50, 65 x 65, 80 x 65, 80 x 80, 100 x 80, 100 x 100 mm |
| “K” Value | Less than 0.5 units |
| Maximum Liquid Temperature | 33°C |
