End Suction Pumps (ECC & ECW)
ECW Series
ECC Series
ECW Series

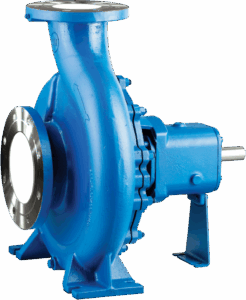

Discover the epitome of engineering excellence with the ECW SERIES – EN 733 Water & Process Pumps by CRI. Crafted with meticulous precision, these pumps are engineered to deliver unparalleled efficiency and reliability, perfectly suited to meet the rigorous demands of industrial and commercial applications. Featuring a maximum flow rate of 550 m³/h and a head up to 100 meters, the ECW SERIES ensures optimal performance even in the most challenging environments. Its patented design includes a serrated and double flat impeller nut for enhanced durability, complemented by a stuffing box for efficient cooling. Compliant with DIN 24255 standards, these pumps minimize shaft deflection, extending the life of mechanical seals and bearings for prolonged operation with minimal downtime. Available in both mechanical seal and soft-packed stuffing box designs, the ECW SERIES is meticulously engineered for maximum efficiency and reduced operating costs.
Applications
- Homogenization of heavy sludge with solid particles
- Removal of sedimentary deposits
- Balancing tanks
- Sewage tanks
- Digesters
- Thickeners
- Flow acceleration
- Biogas mixing tanks
- Ice prevention
- Biogas post-digesters
- Mixture of high viscosity liquids
Key Features
- Compliant with ANSI B73.1 standards
- High durability for chemical processing
- Corrosion-resistant materials for aggressive fluids
All you need to know About – Centrifugal Monoblock Pump (ECW Series- EN 733)
Specifications
| Max. Flow | 550 m³/h |
| Max. Head | 120 metres |
| Max. Power | 160 kW |
| Max. Liquid Temp | 90°C |
| Speed in rpm | 1450 / 2900 |
| Max. Pump Size | DN 150 |
ECC Series
Experience the epitome of reliability and performance with the ECC SERIES – ANSI B73.1 Process Pumps by CRI.Meticulously crafted to deliver unmatched performance and reliability, these pumps redefine industry standards. With a maximum flow rate of 720 m³/h, a head up to 110 meters, and the ability to withstand pressures up to 16 bar, the ECC SERIES is engineered to tackle the most formidable industrial challenges with ease. Its semi-open impeller efficiently handles chemical slurries, while the special jacket provision ensures optimal performance even with hot liquids. Designed for ease of maintenance, the ECC SERIES features a back pull-out design, allowing for hassle-free servicing. Moreover, the inclusion of gland and mechanical seal options enhances versatility, catering to diverse operational requirements. From handling corrosive liquids to managing demineralized water and general refinery services, these pumps are ideal for a wide range of applications.
Applications
- Agriculture
- Domestic
- Irrigation
- Gardens
Key Features
- Industrial Washing
- Bottle Washing
- Corrosion-resistant materials for aggressive fluids
All you need to know About – Centrifugal Monoblock Pump (ECC Series- ANSI B73.1)
Specifications
| Max. Flow | Upto 550 m³/hr |
| Max. Head | Upto 100 metres |
| Max. Power | 200 kW |
| Max. Speed | 500 – 3500 rpm |
