FEEDER PUMPS

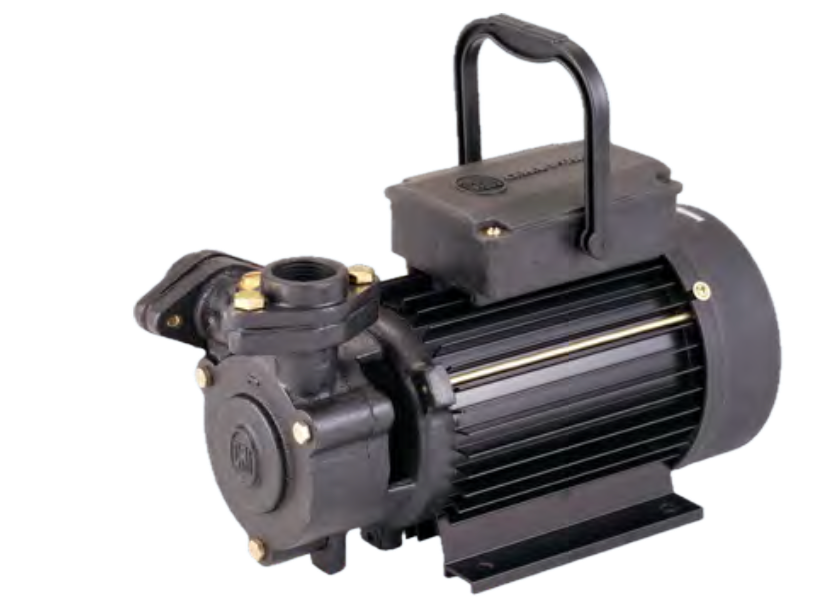

C.R.l’s ClaRO Mini R.O. Pumps are specially designed to deliver high
pressure water in R.O. application. These pumps are powered by a Totally
Enclosed Fan Cooled, A.C. induction motor which is suitable for
continuous duty. Motor stator is made of low watt loss steel laminations
assembled under pressure and rigidly locked in the frame. Dynamically
balanced rotor ensures vibration and noise free operations. The windings
are made of enamelled copper wire offers excellent resistance. The
specially designed unique type mechanical seal is used to withstand in
high TDS water applications.
Applications
- Water Treatment Plant
- Pressure Boosting Systems
- Residential & Gardening
- Hot & Cold Water Circulation
Key Features
- Up to 13 Bar working pressure
- Best suitable for 250 to 1000 liter plant
- Specially designed for RO application
- Heavy type seal is used for high withstanding capacity
- Low noise level and low vibration level
- Inbuilt thermal overload protector
All you need to know about - High Pressure Mini RO Pumps
Specifications
| Power ranges | 0.37 kW – 1.1 kW (0.5 HP – 1.5 HP) |
| Head Range in Meters | 10 Mtrs to 130 Mtrs |
| Flow Range in Meters | 5 LPM to 54 LPM |
| Version | Single Phase, 230V, 50Hz, A.C. Supply |
| Max. Working Pressuree | 13 bar |
| Insulation Class | B |
| Pipe Siz | 15mm x 15mm & 25 x 25mm |
Material Of Construction - Pump
| Motor Frame | Aluminum |
| Front & Back Cover | CI |
| Mechanical Seal | Carbon vs Ceramic |
| Impeller | Brass |
| Shaft | SS 410 |
