High Pressure RO Pumps(inline)
MSP
MTP
MTC
MVC

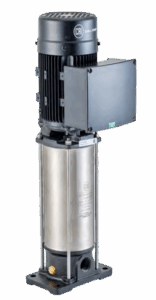

MSP
C.R.I. High-Pressure R.O. Pumps are powered by a Totally Enclosed Fan Cooled, A.C. induction motor, suitable for
continuous duty. Motor stator is made of low watt loss steel laminations assembled under pressure and rigidly locked
in the frame. Dynamically balanced rotor ensures vibration and nois
Applications
- Pressure Boosting Systems in High rise buildings, hotels, Industries, etc.
- Reverse Osmosis Systems & Ultra Filtration Systems
- Modern irrigations such as Sprinklers, Drip feeds etc.,
- Hot & Cold water circulation
- BungalowsWaste water disposal, dying and washings
Key Features
- Corrosion resistant Stainless Steel grade pump parts e n s u r e s longer life.
- All single phase motors are fitted with thermal motor protectors
- Heavy type seal is used for high withstanding capacity
- ED coated premium grade SG casting components used for high durability
- Enhanced hydraulic efficiency
- Good compatibility and environment friendly
- Low noise level an d low vibration level
- In-built thermal overload protector.
- Lesser running cost than conventional systems.
- Factory tested system and supplied as a package.
- Bungalows
- In-built thermal overload protector.
- Lesser running cost than conventional systems.
- Factory tested system and supplied as a package.
- Bungalows
All you need to know about – Pressure Booster Systemi High Pressure RO Pumps(inline) MSP SERIES
Specifications
| Power ranges | 0.55 kW – 1.5 kW (0.75 HP – 2 HP) |
| Head Range in Meters | 11 Mtrs to 135 Mtrs |
| Flow Range in Meters | 1 m’/hr to 4 m/hr |
| Version | Single Phase, 230V & Three Phase 380-415V, 50Hz, A.C. Supply |
| Liquid Temperature | 0° C to 90° C |
| Ambient Temperature | 45° C |
| Max. Working Pressuree | 13 bar |
| Insulation Class | F |
| Degree of Protection | IP 55 |
Material Of Construction
| Pump Shell | SS 304 |
| Impeller | SS 304 |
| Diffuser | Noryl |
| Mech. Seal | SiC vs Carbon vs HNBR |
| Motor Frame | Aluminium |
| Front & Back Cover | Aluminium |
| Cooling Fan Cover | Mild Steel |
| Cooling Fan | Nylon |

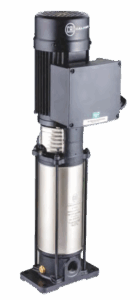

MTP
C.R.I. High-Pressure R.O. Pumps are powered by a Totally Enclosed Fan Cooled, A.C. induction motor, suitable for
continuous duty. Motor stator is made of low watt loss steel laminations assembled under pressure and rigidly locked
in the frame. Dynamically balanced rotor ensures vibration and nois
Applications
- Pressure Boosting Systems in High rise buildings, hotels, Industries, etc.
- Reverse Osmosis Systems & Ultra Filtration Systems
- Modern irrigations such as Sprinklers, Drip feeds etc.,
- Hot & Cold water circulation
- BungalowsWaste water disposal, dying and washings
Key Features
- Corrosion resistant Stainless Steel grade pump parts e n s u r e s longer life.
- All single phase motors are fitted with thermal motor protectors
- Heavy type seal is used for high withstanding capacity
- ED coated premium grade SG casting components used for high durability
- Enhanced hydraulic efficiency
- Good compatibility and environment friendly
- Low noise level an d low vibration level
- In-built thermal overload protector.
- Lesser running cost than conventional systems.
- Factory tested system and supplied as a package.
- Bungalows
- In-built thermal overload protector.
- Lesser running cost than conventional systems.
- Factory tested system and supplied as a package.
- Bungalows
All you need to know about – Pressure Booster Systemi High Pressure RO Pumps(inline) MTP SERIES
Specifications
| Power ranges | 0.55 kW – 3.0 kW (0.75 HP – 4 HP) |
| Head Range in Meters | 25 Mtrs to 211 Mtrs |
| Flow Range in Meters | 1 m’/hr to 7 m/hr |
| Version | Single Phase, 230V & Three Phase 380-415V, 50Hz, A.C. Supply |
| Liquid Temperature | 0° C to 90° C |
| Ambient Temperature | 45° C |
| Max. Working Pressuree | 21 bar |
| Insulation Class | F |
| Degree of Protection | IP 55 |
Material Of Construction
| Pump Shell | SS 304 |
| Impeller | SS 304 |
| Diffuser | Noryl |
| Mech. Seal | SiC vs Carbon vs HNBR |
| Motor Frame | Aluminium |
| Front & Back Cover | Aluminium |
| Cooling Fan Cover | Mild Steel |
| Cooling Fan | Nylon |

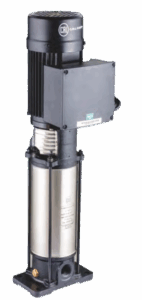

MTC
C.R.I. High-Pressure R.O. Pumps are powered by a Totally Enclosed Fan Cooled, A.C. induction motor, suitable for
continuous duty. Motor stator is made of low watt loss steel laminations assembled under pressure and rigidly locked
in the frame. Dynamically balanced rotor ensures vibration and nois
Applications
- Pressure Boosting Systems in High rise buildings, hotels, Industries, etc.
- Reverse Osmosis Systems & Ultra Filtration Systems
- Modern irrigations such as Sprinklers, Drip feeds etc.,
- Hot & Cold water circulation
- BungalowsWaste water disposal, dying and washings
Key Features
- Corrosion resistant Stainless Steel grade pump parts e n s u r e s longer life.
- All single phase motors are fitted with thermal motor protectors
- Heavy type seal is used for high withstanding capacity
- ED coated premium grade SG casting components used for high durability
- Enhanced hydraulic efficiency
- Good compatibility and environment friendly
- Low noise level an d low vibration level
- In-built thermal overload protector.
- Lesser running cost than conventional systems.
- Factory tested system and supplied as a package.
- Bungalows
- In-built thermal overload protector.
- Lesser running cost than conventional systems.
- Factory tested system and supplied as a package.
- Bungalows
All you need to know about – Pressure Booster Systemi High Pressure RO Pumps(inline) MTC SERIES
Specifications
| Power ranges | 1.1 kW to 3 kW (1.5 HP to 4 HP) |
| Head Range in Meters | 37 Mtrs to 211 Mtrs |
| Flow Range in Meters | 1 m’/hr to 8 m’/hr |
| Version | Single Phase, 230V & Three Phase 380-415V, 50Hz, A.C. Supply |
| Liquid Temperature | 0° C to 90° C and – 15° C to 120° C |
| Ambient Temperature | 45° C |
| Max. Working Pressuree | 21 bar |
| Insulation Class | F |
| Degree of Protection | IP 55 |
Material Of Construction
| Pump Shell | SS 304 / SS 316 |
| Impeller | SS 304 |
| Diffuser | SS 304 |
| Mech. Seal | SiC vs SiC vs Viton |
| Motor Frame | Aluminium |
| Front & Back Cover | Aluminium |
| Cooling Fan Cover | Mild Steel |
| Cooling Fan | Nylon |

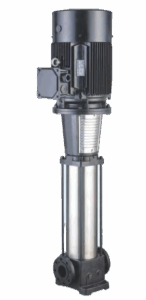

MVC
C.R.I. High-Pressure R.O. Pumps are powered by a Totally Enclosed Fan Cooled, A.C. induction motor, suitable for
continuous duty. Motor stator is made of low watt loss steel laminations assembled under pressure and rigidly locked
in the frame. Dynamically balanced rotor ensures vibration and nois
Applications
- Pressure Boosting Systems in High rise buildings, hotels, Industries, etc.
- Reverse Osmosis Systems & Ultra Filtration Systems
- Modern irrigations such as Sprinklers, Drip feeds etc.,
- Hot & Cold water circulation
- BungalowsWaste water disposal, dying and washings
Key Features
- Corrosion resistant Stainless Steel grade pump parts e n s u r e s longer life.
- All single phase motors are fitted with thermal motor protectors
- Heavy type seal is used for high withstanding capacity
- ED coated premium grade SG casting components used for high durability
- Enhanced hydraulic efficiency
- Good compatibility and environment friendly
- Low noise level an d low vibration level
- In-built thermal overload protector.
- Lesser running cost than conventional systems.
- Factory tested system and supplied as a package.
- Bungalows
- In-built thermal overload protector.
- Lesser running cost than conventional systems.
- Factory tested system and supplied as a package.
- Bungalows
All you need to know about – High Pressure RO Pumps(inline) MVC SERIES
Specifications
| Power ranges | 1.1 kW to 4 kW (1.5 HP to 5.5 HP) |
| Head Range in Meters | 37 Mtrs to 211 Mtrs |
| Flow Range in Meters | 1 m’/hr to 7 m’/hr |
| Version | Single Phase, 230V & Three Phase 380-415V, 50Hz, A.C. Supply |
| Liquid Temperature | 0° C to 90° C and – 15° C to 120° C |
| Ambient Temperature | 45° C |
| Max. Working Pressuree | 21 bar |
| Insulation Class | F |
| Degree of Protection | IP 55 |
Material Of Construction
| Outer Shell | SS 304 |
| Pump Head & Base | Cl |
| Impeller & Diffuser | SS 304 |
| Pump Shaft | SS 304 / SS 431 |
| Bearing Ring | SiC & T.C |
| Mechanical Seal | SiC Vs SiC Vs Viton / T.C Vs Car Vs Viton |
| Motor Frame | Aluminium |
| Front & Back Cover | Aluminium |
| Cooling Fan Cover | Mild Steel |
| Cooling Fan | Nylon |
