Horizontal Openwell Submersible
PALNO Series
CSS Series
SELFY+ Series

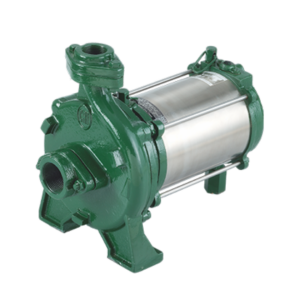

PALNO Series
The Plano series from CRI sets a new standard in openwell submersible pumps, integrating high-efficiency motors that cater to diverse residential water requirements. Offering a power range that spans from 1 horsepower submersible pump to higher capacities, the Plano pumps are constructed for long-lasting performance. Their sophisticated design ensures a quiet operation, positioning them as the best submersible pump for those who value both function and form.
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- Heavy cooling design
- High cooling motor
- Wide voltage operation
- No need for a pump house
- No suction and priming problem
- Vast applications: irrigation, agriculture, domestic, industrial, garden, rural water supply
All you need to know about – Horizontal Openwell Submersible Pumps (Plano Series)
Specifications
| Power Range | 0.37 kW – 1.5 kW (0.5 HP – 2 HP) |
| Speed | 2880 RPM |
| Version | Single phase 220 – 240V, 50Hz, A.C. Supply |
| Maximum Total Head | Up to 45 metre |
| Maximum Flow Rate | Up to 8.5 lps (30.6 m³/hr) |
| Type of Duty | S1 (Continuous) |

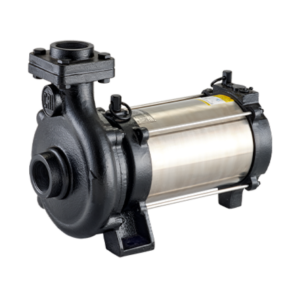

CSS Series
Need a tough and reliable water pump? Look no further than the CSS series. With pumps that can handle everything from your garden to your shower, the CSS is all about giving you a strong, steady stream of water, whether it’s the more modest 1 hp submersible or the mighty 1.5 hp submersible pump. These are designed with superior materials for unmatched durability and performance, solidifying their status as the best open-well submersible pump choice for residential applications.
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- High operating efficiency
- Motor is designed with higher cooling effect to ensure longer life
- Easy to dismantle and repair
- Available in SS304, CI, and Noryl impellers
- Available with 3 metre and 10 metre cable length
All you need to know about – Horizontal Openwell Submersible Pumps (CSS Series)
Specifications
| Power Range | 0.37 kW – 2.2 kW (0.5 HP – 3 HP) |
| Version | Single phase 220 – 240V, Three phase 380 – 415V, 50Hz AC Supply |
| Maximum Head | Up to 56.5 metres |
| Maximum Flow Rate | Up to 17 lps (61.2 m³/hr) |
Material Of Construction
| Component | Material |
|---|---|
| Impeller | SS 304 / Noryl / Cast Iron |
| Bracket | Cast Iron |
| Casing | Cast Iron |
| Motor Shaft | SS 410 |
| Motor Body | SS 304 |

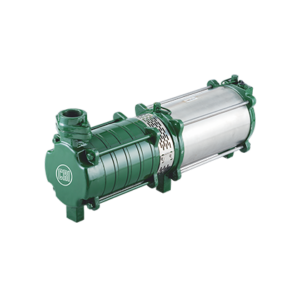

SELFY+ Series
The Selfy+ series is a new advancement in horizontal open well submersible pumps, designed to provide homeowners with both reliable water supply and peace of mind. With the convenience of a 1hp submersible pump and the strength of a 1.5 hp submersible pump, the Selfy+ offers a perfect balance of simplicity and power. Whether you need it for irrigation or daily water usage, this pump delivers unmatched efficiency and is considered one of the best submersible pump options for hassle-free and dependable water supply at home.
Applications
- Industries
- Agricultural
- Hotels
- Apartments
Key Features
- High operating efficiency
- Motor is designed with higher cooling effect to ensure longer life
- Easy to dismantle and repair
- Available in SS304, CI, and Noryl impellers
- Available with 3 metre and 10 metre cable length
All you need to know about – Horizontal Openwell Submersible Pumps (Selfy+ Series)
Specifications
| Power Range | 0.37 kW – 2.2 kW (0.5 HP – 3 HP) |
| Version | Single phase 220 – 240V, Three phase 380 – 415V, 50Hz AC Supply |
| Maximum Head | Up to 56.5 metres |
| Maximum Flow Rate | Up to 17 lps (61.2 m³/hr) |
Material Of Construction
| Component | Material |
|---|---|
| Impeller | SS 304 / Noryl / Cast Iron |
| Bracket | Cast Iron |
| Casing | Cast Iron |
| Motor Shaft | SS 410 |
| Motor Body | SS 304 |
