pressure booster system (MVHS & MHHS)
The MVHS SERIES Pressure Booster System by CRI is the premier choice for efficient water pressure management in commercial, industrial, and residential settings. With a remarkable flow rate of 1200 m³/h and a head of up to 300 meters, this system ensures optimal water pressure management across a wide range of applications. Engineered with advanced IMS logic and cascading operation, the MVHS SERIES offers seamless and reliable automation, ensuring low noise, minimal maintenance, and cost-effective performance. Constructed with high-quality stainless steel, galvanized iron, and nickel-plated components, this system guarantees exceptional durability and longevity. Safety features such as pump dry run protection, overload protection, and low-pressure protection enhance operational reliability, making the MVHS SERIES ideal for demanding commercial and industrial environments.
Applications
- Commercial Buildings & Residential Building
- Irrigation Systems
- Industries
- General Public Sector
- Water distribution & Tank filling
Key Features
- Pump Operational
- Pressure Feedback
- Protection Function
- Alarms – Visual/Audible
- Communication Protocol
- Parallel pumping
- Silent Operation
- Energy Efficiency
- Factory Fitted & Tested
- Protection Functions
- Alarms – Visual/Audible
- Communication Protocol
- Powered with IE5 Motors
- Dedicated IMS Logic
- Very less Downtime
- Low-Pressure Protection
- Modbus RS485 communication Protocol
- Protection Functions
- Alarms – Visual/Audible
- Communication Protocol
- Protection Functions
- Alarms – Visual/Audible
- Communication Protocol
- Protection Functions
- Alarms – Visual/Audible
- Communication Protocol
All you need to know about – Pressure Booster (MVHS Series)
OPERATION RANGES
| Max. Flow | 1200 m³/h |
| Max. Head | 300 metres |
| Max. Power | 110 kW |
| Max. Liquid Temperature | 70° C |
| Speed in RPM | 2900 |
Material Of Construction
| Pump | SS |
| Valves | Nickel Plate / CI / SS |
| NRV | Brass / CI |
| Base Frame | GI / SS |
| Manifold | GI / SS |
Applications
- Residential
- Apartments
- Small Farms
- Washing System
- Gardening
- Hospitals, Hotels, Schools
- Small Industries
Key Features
- Automatic cascade control of pumps by means of one / two pressure switch(es).
- Automatic change-over at any start/stop cycle
- Start & Stop delays to prevent simultaneous starting / stopping of the 2 pumps.
- Dry running protection by means of current sensing program.
- Automatic circuit breaker protecting the motor against short circuit and overload.

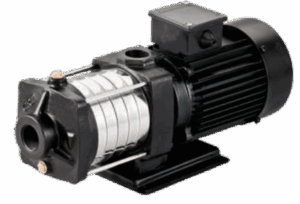

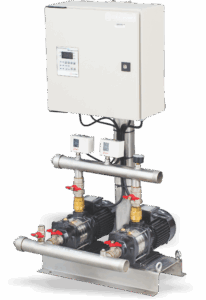

All you need to know about – Pressure Booster Pump (MHHS Series)
Specifications
| Max. Flow | %56 m³/h |
| Max. Head | 50 metres |
| Max. Power | 2.2 kW |
| Max. Liquid Temperature | 70° C |
Material Of Construction
| Pump | SS |
| Valves | Nickel Plate / CI / SS |
| NRV | Brass / CI |
| Base Frame | GI / SS |
| Manifold | GI / SS |
