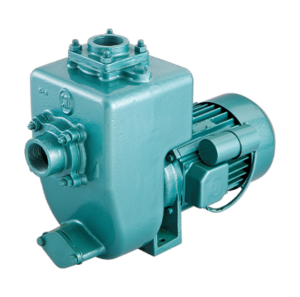

Self-priming Non-Clog Monoblock (SMB Series)
Experience seamless and robust water management at home with the Self Priming Monoblock Pump set-SMB Series by C.R.I. This compact domestic water pump integrates a mono motor with cutting-edge centrifugal technology for exceptional performance. Whether for borewell or garden applications, this efficient submersible pump motor stands out among other monoblock pumps. It is the ideal choice for open well applications, providing a perfect blend of power and reliability, and is widely recognised as a top submersible pump. With a durable construction that is capable of handling the demands of any 1 hp submersible pump, it ensures continuous and energy-efficient operation for all your residential water supply requirements. Choose the Self Priming Monoblock Pumpset-SMB Series by C.R.I. and experience uninterrupted water supply with superior performance.
Applications
- Domestic
- Pressure boosting
- Civil applications
- House watering systems
Key Features
- Upto 100 metre (328 feet) working capacity
- Solid handling capacity up to 8.5mm
- Built-in with imported Thermal Overload Protector
- Specially designed for wide voltage operation
- Double sealed ball bearing, no need for external lubrication
- Pumpset available with extension shaft for multipurpose applications
All you need to know about - Self-priming Non-Clog Monoblock (SMB Series)
Specifications
| Power range | 0.75kW – 3.75kW (1HP – 5HP) |
| Speed | 2880 RPM |
| Versions | Single Phase 200-240V, 50Hz, A.C. Supply Three Phase 380-415V, 50Hz, A.C. Supply |
| Maximum total head | 24 metres |
| Maximum flow rate | 1050 lpm |
| Type of Duty | S1 (Continuous) |
| Sealing | SMB 140 Mechanical seal arrangement SMB 240, 350 & 580 Stuffing box arrangement |
