Stainless Steel Centrifugal Monoblock
CTSS Series
JTS Series

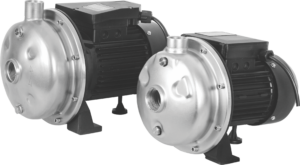

CTSS Series
C.R.I. S.S. Centrifugal Monoblock / Self-Priming Jet pumps are carefully designed to give best hydraulic efficiency and suction lift characteristics. Most modern and highly sophisticated machinery and technology are employed in the manufacture of these pumps, using quality raw material, seals and ball bearings to ensure long life. Dynamically balanced rotor ensures vibration free and noise free operation. Al single phase pumps are in-built with thermal overload protector to prevent overload. High operating efficiency of these pumps result in low power consumption.
Applications
- Domestic
- Garden
- Civil applications
- Farms
Key Features
- In-built thermal overload protector
- Hygienic pumping system
- Features an in-built thermal overload protector and a non-return valve
All you need to know about – Stainless Steel Centrifugal Monoblock (CTSS Series)
Specifications
Power Range | 0.75 kW (1 HP) |
Version | 1Ph – 220V / 3Ph – 380-415V, 50Hz, AC |
Maximum Head | 23 metres |
Maximum Flow Rate | 2.5 lps (9 m³/hr) |
Materials Of Construction
Component | Material |
---|---|
Pump Casing | S.S 304 |
Motor Frame | Aluminium |
Impeller | S.S 304 |
Shaft | S.S 304 |
Shaft Sealing | Mechanical Seal (Carbon & Ceramic) |

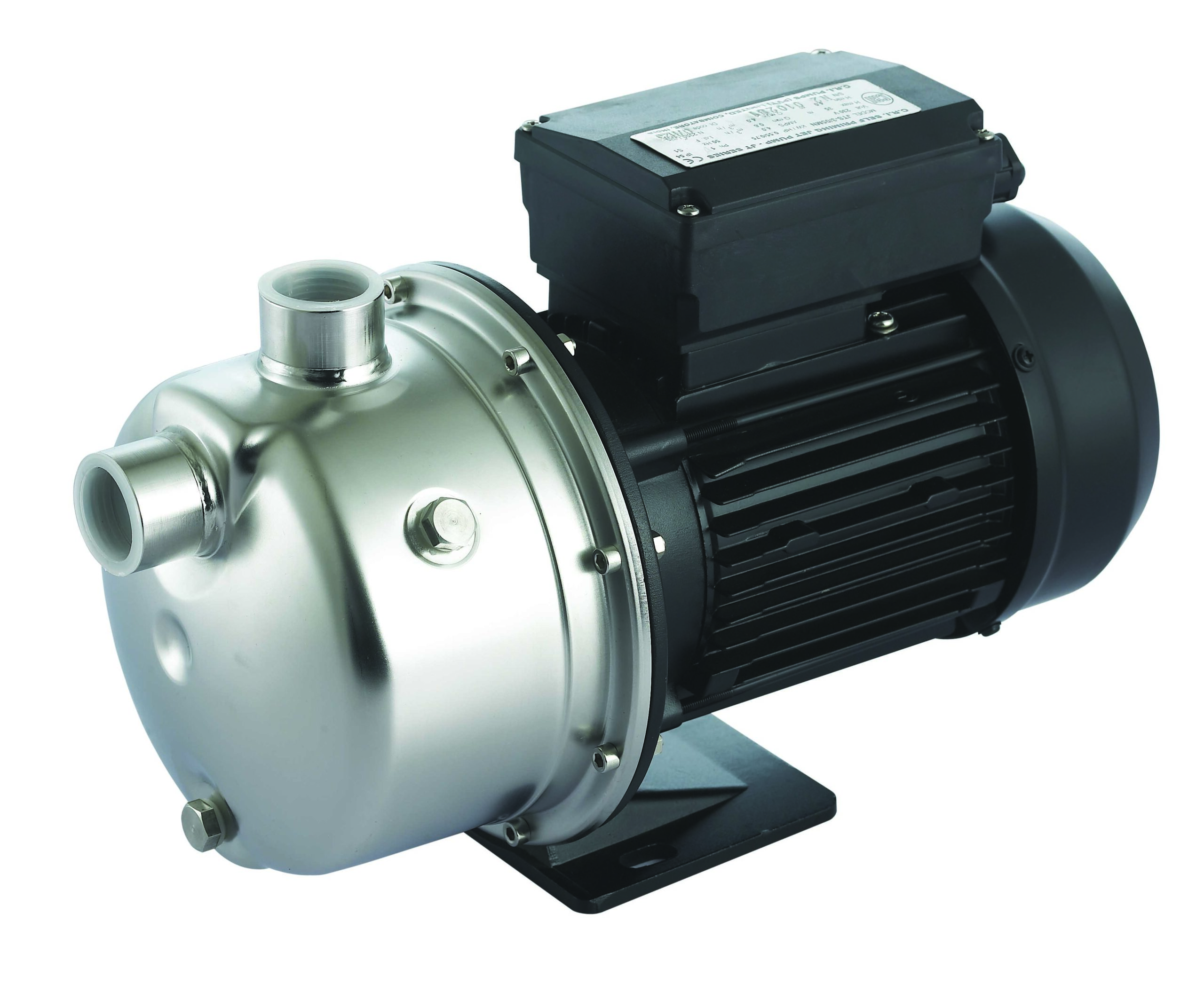

JTS Series
C.R.I. S.S. Centrifugal Monoblock / Self-Priming Jet pumps are carefully designed to give best hydraulic efficiency and suction lift characteristics. Most modern and highly sophisticated machinery and technology are employed in the manufacture of these pumps, using quality raw material, seals and ball bearings to ensure long life. Dynamically balanced rotor ensures vibration free and noise free operation. Al single phase pumps are in-built with thermal overload protector to prevent overload. High operating efficiency of these pumps result in low power consumption.
Applications
- Domestic
- Garden
- Civil applications
- Farms
Key Features
- In-built thermal overload protector
- Hygienic pumping system
- Features an in-built thermal overload protector and a non-return valve
All you need to know about – Stainless Steel Centrifugal Monoblock (JTS Series)
Specifications
Power Range | 0.37 kW – 0.75 kW (0.5 HP – 1 HP) |
Version | 1Ph – 220V / 3Ph – 380-415V, 50Hz, AC |
Maximum Head | 40 metres |
Maximum Flow Rate | 1.04 lps (3.74 m³/hr) |
Materials Of Construction
Component | Material |
---|---|
Pump Casing | S.S 304 |
Motor Frame | Aluminium |
Impeller | S.S 304 |
Shaft | S.S 304 |
Shaft Sealing | Mechanical Seal (Carbon & Ceramic) |
