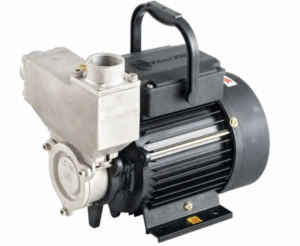

Stainless steel self priming monoblock pumps
CRI Mini Stainless Steel Self priming Pumps are designed with fully SS casted pump components which provides longer life and maintains hygiene of fluid’s. Most modem and highly sophisticated machinery and technology are employed in the manufacture of these pumps, using quality raw material, seals and ball bearings to ensure long life. Dynamically balanced rotor ensures vibration free and noise free operation. Al single phase pumps are in-built with thermal overload protector to prevent overload.
Applications
- Salt water
- Domestic water supply
- Civil Applications
Key Features
- Corrosive resistant pump parts to ensure longer life.
- Optimized hydraulic design for efficient performance.
- Smooth surface finish results in friction free flow of fluid.
- Best suitable for saline water.
All you need to know about - Stainless steel self priming monoblock pumpset
Specifications
Power Range | 0.5HP (0.37 kW) and 1HP (0.75 kW) |
Maximum Head | 6 to 30 metre |
Maximum flow rate | 7 0 0 LPH to 3000 LPH |
Version | Single Phase 220V, 50Hz, AC supplySingle Phase 220V, 50Hz, AC supply |
Delivery Size | 25 × 25 mm |
Material Of Construction - Pump
Motor Body | Aluminium Extruded |
Rotor | Aluminium Die Cast |
Pump Casing | SS |
Impeller | High Tensile Brass |
Mechanical Seal | Carbon vs Ceramic |
