WASTE WATER SUBMERSIBLE PUMPS
C.R.I. has introduced highly efficient and reliable sewage & drainage pumps in a comprehensive range. These pumps are available with different materials of
construction and feature a multitude of applications in waste water handling and treatment.
Al C.R.l. sewage & drainage pumps are perfectly powered by motor designed to deliver optimal performance and to with stand weather and power fluctuation.
Applications
- Draining sewage water from hotels, houses, commercial buildings, complexes etc
- Pumping waste water in industries
- Pumping municipal sewage water
- Septic tanks
Key Features
- Non clogging impellers ensures free flow of solids
- Cutter design yields fine solids for non clogging operation
- Corrosion resistant Stainless Steel 304 Grade Pump portion ensures longer life
- Plastic & SS body with Heavy Construction and Shock Proof
- Motor is designed with Self Cooling Effect
- Epoxy Potted water proof cables
- Prevention from dry run
- Efficient pumps with more energy savings
- Automatic ON/OFF operation enabled by adjustable float switch

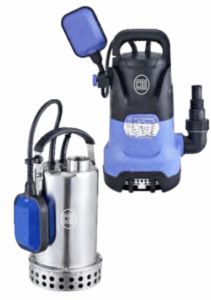

All you need to know about – WASTE WATER SUBMERSIBLE PUMPS MS & MP
Specifications
| Power Range | 0.5 – 0.75 kW (0.75 – 1 HP) |
| Speed | 2880 rpm |
| Version | Single Phase 230V; Three Phase 380 – 415V; 50Hz A.C. Supply |
| Degree of Protection | IP 68 |
| Insulation Class | E /B/H/F |
| Motor Type | Dry – type |
| Max. Immersion Depth | 5m |
| Sealing | Mechanical Seal |
| Impeller Type | Closed Multi Channel |
| Max. Ambient Temp. | 40°C |
| Delivery Size (mm) | 32 & 40mm |
| Solid handling capacity | Up to 25mm |
| Max. Head | 8.2 metre |
| Max. Flow | 10 m%/hr |
C.R.I. has introduced highly efficient and reliable sewage & drainage pumps in a comprehensive range. These pumps are available with different materials of
construction and feature a multitude of applications in waste water handling and treatment.
Al C.R.l. sewage & drainage pumps are perfectly powered by motor designed to deliver optimal performance and to with stand weather and power fluctuation.
Applications
- Draining sewage water from hotels, houses, commercial buildings, complexes etc
- Pumping waste water in industries
- Pumping municipal sewage water
- Septic tanks
Key Features
- Non clogging impellers ensures free flow of solids
- Cutter design yields fine solids for non clogging operation
- Corrosion resistant Stainless Steel 304 Grade Pump portion ensures longer life
- Plastic & SS body with Heavy Construction and Shock Proof
- Motor is designed with Self Cooling Effect
- Epoxy Potted water proof cables
- Prevention from dry run
- Efficient pumps with more energy savings
- Automatic ON/OFF operation enabled by adjustable float switch

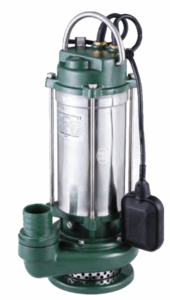

All you need to know about – WASTE WATER SUBMERSIBLE PUMPS DL
Specifications
| Power Range | 0.5 – 1.5 kW (0.75 – 2 HP) |
| Speed | 2880 rpm |
| Version | Single Phase 230V; Three Phase 380 – 415V; 50Hz A.C. Supply |
| Degree of Protection | IP 68 |
| Insulation Class | E /B/H/F |
| Motor Type | Dry – type |
| Max. Immersion Depth | 5m |
| Sealing | Mechanical Seal |
| Impeller Type | Closed Multi Channel, Semi Open Double Channel |
| Max. Ambient Temp. | 40°C |
| Delivery Size (mm) | 32 & 50mm |
| Solid handling capacity | – |
| Max. Head | 20 metre |
| Max. Flow | 25.2 m’/hr |
C.R.I. has introduced highly efficient and reliable sewage & drainage pumps in a comprehensive range. These pumps are available with different materials of
construction and feature a multitude of applications in waste water handling and treatment.
Al C.R.l. sewage & drainage pumps are perfectly powered by motor designed to deliver optimal performance and to with stand weather and power fluctuation.
Applications
- Draining sewage water from hotels, houses, commercial buildings, complexes etc
- Pumping waste water in industries
- Pumping municipal sewage water
- Septic tanks
Key Features
- Non clogging impellers ensures free flow of solids
- Cutter design yields fine solids for non clogging operation
- Corrosion resistant Stainless Steel 304 Grade Pump portion ensures longer life
- Plastic & SS body with Heavy Construction and Shock Proof
- Motor is designed with Self Cooling Effect
- Epoxy Potted water proof cables
- Prevention from dry run
- Efficient pumps with more energy savings
- Automatic ON/OFF operation enabled by adjustable float switch
All you need to know about – WASTE WATER SUBMERSIBLE PUMPS SL
Specifications
| Power Range | 0.5 – 2.2 KW (0.75 – 3 HP) |
| Speed | 2880 rpm |
| Version | Single Phase 230V; Three Phase 380 – 415V; 50Hz A.C. Supply |
| Degree of Protection | IP 68 |
| Insulation Class | E /B/H/F |
| Motor Type | Dry – type |
| Max. Immersion Depth | 5m |
| Sealing | Mechanical Seal |
| Impeller Type | Vortex |
| Max. Ambient Temp. | 40°C |
| Delivery Size (mm) | 40, 50 & 65mm |
| Solid handling capacity | Up to 55mm |
| Max. Head | 18 metre |
| Max. Flow | 43.2 m /hr |
C.R.I. has introduced highly efficient and reliable sewage & drainage pumps in a comprehensive range. These pumps are available with different materials of
construction and feature a multitude of applications in waste water handling and treatment.
Al C.R.l. sewage & drainage pumps are perfectly powered by motor designed to deliver optimal performance and to with stand weather and power fluctuation.
Applications
- Draining sewage water from hotels, houses, commercial buildings, complexes etc
- Pumping waste water in industries
- Pumping municipal sewage water
- Septic tanks
Key Features
- Non clogging impellers ensures free flow of solids
- Cutter design yields fine solids for non clogging operation
- Corrosion resistant Stainless Steel 304 Grade Pump portion ensures longer life
- Plastic & SS body with Heavy Construction and Shock Proof
- Motor is designed with Self Cooling Effect
- Epoxy Potted water proof cables
- Prevention from dry run
- Efficient pumps with more energy savings
- Automatic ON/OFF operation enabled by adjustable float switch

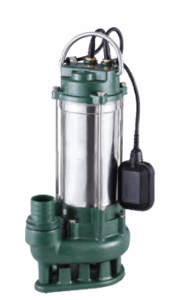

All you need to know about – WASTE WATER SUBMERSIBLE PUMPS SLC
Specifications
| Power Range | 1.1 & 1.8 kW (1.5 & 2.4 HP) |
| Speed | 2880 rpm |
| Version | Single Phase 230V; Three Phase 380 – 415V; 50Hz A.C. Supply |
| Degree of Protection | IP 68 |
| Insulation Class | E /B/H/F |
| Motor Type | Dry – type |
| Max. Immersion Depth | 5m |
| Sealing | Mechanical Seal |
| Impeller Type | Vortex Semi Open Double Channel |
| Max. Ambient Temp. | 40°C |
| Delivery Size (mm) | 50 & 80mm |
| Solid handling capacity | – |
| Max. Head | 12 metre |
| Max. Flow | 20 m € /hr |
C.R.I. has introduced highly efficient and reliable sewage & drainage pumps in a comprehensive range. These pumps are available with different materials of
construction and feature a multitude of applications in waste water handling and treatment.
Al C.R.l. sewage & drainage pumps are perfectly powered by motor designed to deliver optimal performance and to with stand weather and power fluctuation.
Applications
- Draining sewage water from hotels, houses, commercial buildings, complexes etc
- Pumping waste water in industries
- Pumping municipal sewage water
- Septic tanks
Key Features
- Non clogging impellers ensures free flow of solids
- Cutter design yields fine solids for non clogging operation
- Corrosion resistant Stainless Steel 304 Grade Pump portion ensures longer life
- Plastic & SS body with Heavy Construction and Shock Proof
- Motor is designed with Self Cooling Effect
- Epoxy Potted water proof cables
- Prevention from dry run
- Efficient pumps with more energy savings
- Automatic ON/OFF operation enabled by adjustable float switch

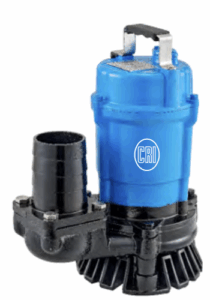

All you need to know about – WASTE WATER SUBMERSIBLE PUMPS CDL
Specifications
| Power Range | 0.4 & 0.75 kW (0.55 & 1HP) |
| Speed | 2880 rpm |
| Version | Single Phase 230V; Three Phase 380 – 415V; 50Hz A.C. Supply |
| Degree of Protection | IP 68 |
| Insulation Class | E /B/H/F |
| Motor Type | Dry – type |
| Max. Immersion Depth | 5m |
| Sealing | Mechanical Seal |
| Impeller Type | Vortex |
| Max. Ambient Temp. | 40°C |
| Delivery Size (mm) | 50 & 80mm |
| Solid handling capacity | 6 mm |
| Max. Head | 18 metre |
| Max. Flow | 18 m € /hr |
C.R.I. has introduced highly efficient and reliable sewage & drainage pumps in a comprehensive range. These pumps are available with different materials of
construction and feature a multitude of applications in waste water handling and treatment.
Al C.R.l. sewage & drainage pumps are perfectly powered by motor designed to deliver optimal performance and to with stand weather and power fluctuation.
Applications
- Draining sewage water from hotels, houses, commercial buildings, complexes etc
- Pumping waste water in industries
- Pumping municipal sewage water
- Septic tanks
Key Features
- Non clogging impellers ensures free flow of solids
- Cutter design yields fine solids for non clogging operation
- Corrosion resistant Stainless Steel 304 Grade Pump portion ensures longer life
- Plastic & SS body with Heavy Construction and Shock Proof
- Motor is designed with Self Cooling Effect
- Epoxy Potted water proof cables
- Prevention from dry run
- Efficient pumps with more energy savings
- Automatic ON/OFF operation enabled by adjustable float switch

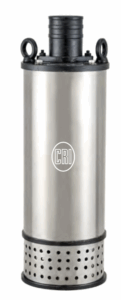

All you need to know about – WASTE WATER SUBMERSIBLE PUMPS DM-CDDP
Specifications
| Power Range | 1.5 – 5.5 kW (2 – 7.5 HP) |
| Speed | 2880 rpm |
| Version | Single Phase 230V; Three Phase 380 – 415V; 50Hz A.C. Supply |
| Degree of Protection | IP 68 |
| Insulation Class | E /B/H/F |
| Motor Type | Dry – type |
| Max. Immersion Depth | 5m |
| Sealing | Mechanical Seal |
| Impeller Type | Closed Double Channel |
| Max. Ambient Temp. | 40°C |
| Delivery Size (mm) | 50 & 80mm |
| Solid handling capacity | up to 30mm |
| Max. Head | 32 metre |
| Max. Flow | 60 m € /hr |
C.R.I. has introduced highly efficient and reliable sewage & drainage pumps in a comprehensive range. These pumps are available with different materials of
construction and feature a multitude of applications in waste water handling and treatment.
Al C.R.l. sewage & drainage pumps are perfectly powered by motor designed to deliver optimal performance and to with stand weather and power fluctuation.
Applications
- Draining sewage water from hotels, houses, commercial buildings, complexes etc
- Pumping waste water in industries
- Pumping municipal sewage water
- Septic tanks
Key Features
- Non clogging impellers ensures free flow of solids
- Cutter design yields fine solids for non clogging operation
- Corrosion resistant Stainless Steel 304 Grade Pump portion ensures longer life
- Plastic & SS body with Heavy Construction and Shock Proof
- Motor is designed with Self Cooling Effect
- Epoxy Potted water proof cables
- Prevention from dry run
- Efficient pumps with more energy savings
- Automatic ON/OFF operation enabled by adjustable float switch

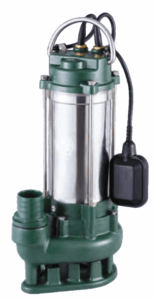

All you need to know about – WASTE WATER SUBMERSIBLE PUMPS SM
Specifications
| Power Range | 0.75 – 7.5 kW (1 – 10 HP) |
| Speed | 2880 rpm |
| Version | Single Phase 230V; Three Phase 380 – 415V; 50Hz A.C. Supply |
| Degree of Protection | IP 68 |
| Insulation Class | E /B/H/F |
| Motor Type | Dry – type |
| Max. Immersion Depth | 5m |
| Sealing | Mechanical Seal |
| Impeller Type | Vortex |
| Max. Ambient Temp. | 40°C |
| Delivery Size (mm) | 40, 50, 80 & 100mm |
| Solid handling capacity | up to 12mm |
| Max. Head | 30 metre |
| Max. Flow | 105 m € /hr |
