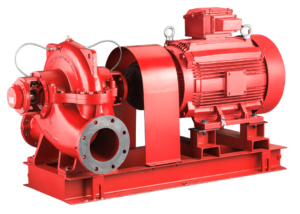

Fire Fighting SCW system
Backed by experience of over six decades standing, state of art prototype facility, manufacturing expertise and of course a passion for quality, CRI pumps have often set the benchmark in providing reliable solutions as evidentfrom its Industrial pump ranges.

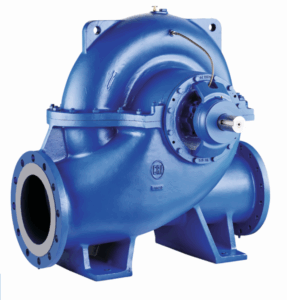

SCW Series – Reliability and high Quality, Horizontal single Stage, Between Bearing Pumps for high flow and head, designed as per IS 5120 – 1977 standard to pump water and other liquids with low contamination.
Applications
- Desalination
- Water Supply
- Fire Fighting
- Lift Irrigation
- Cooling tower
- Booster Pumping
- General Utility Purpose
- Power Station
- Sugar Plants
Key Features
- Module design for maximum interchangeability of rotating units (excluding impeller) - reducing inventory cost.
- Options for single and double volute
- Protection Functions
- Alarms- Visual/ Audible
- Communication Protocol
All you need to know about - Fire Fighting SCW system
Technical Specifications
| Max. Flow | 8000 m³/h |
| Max. Head | 350 metres |
| Outlet Size | 900 mm |
| Moc | CI, DI, Bronze, SS, Duplex, Super Duplex |
| Max. Liquid Temp | 90° C |
| Speed in RPM | 960/1450/2900 |
| Outlet Size | DN 450 |
Material Of Construction
| Casing | Cast Iron |
| Impeller | CI / Broze / SS |
| Shaft | SS 410 |
| Shaft Sleeve | SS 410 |
| Sealing | Gland & Mechanical Seal |
